Product Description: Jiasheng Crochet Series JSG965/B3

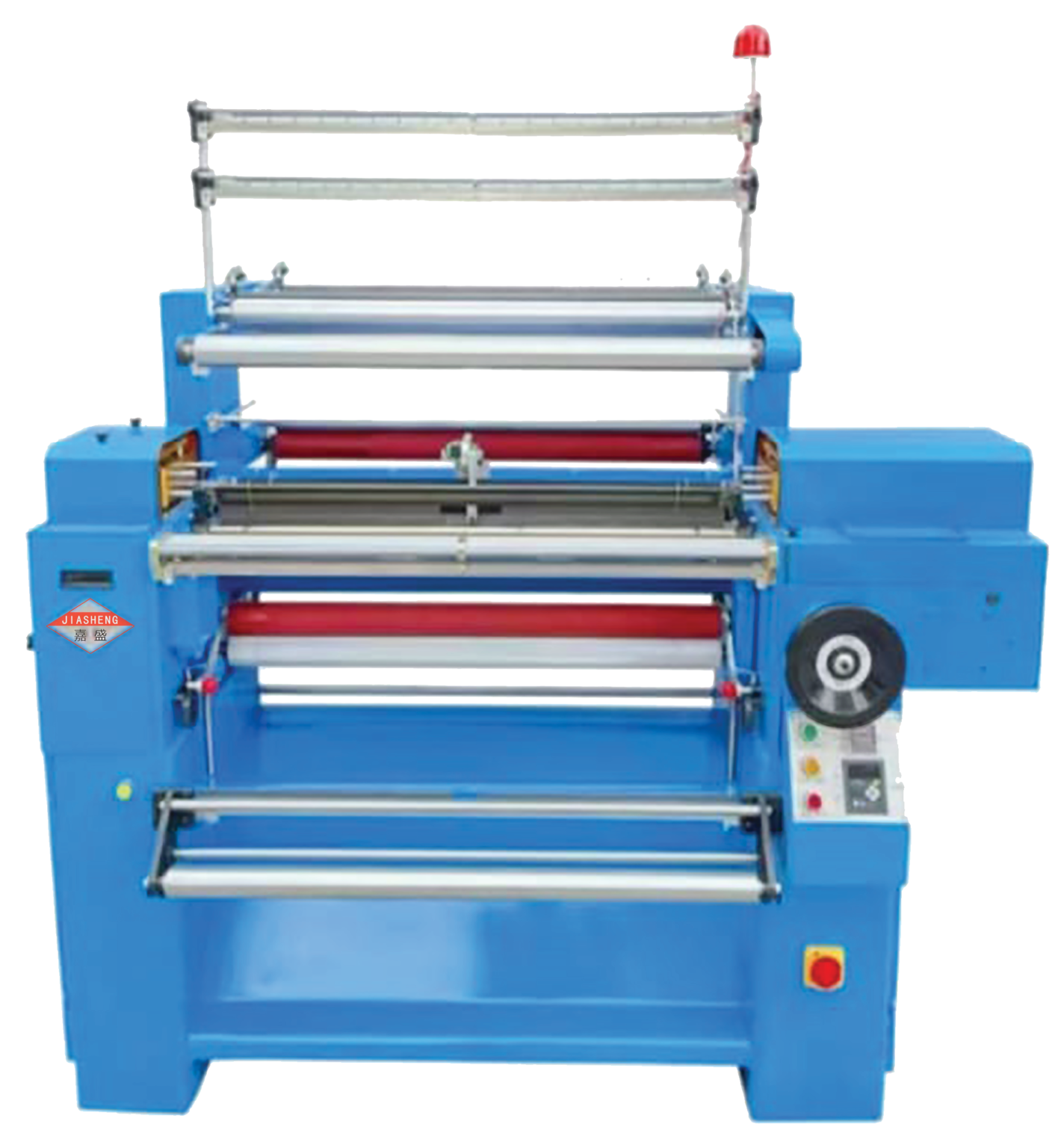

The Jiasheng Crochet Machine JSG965/B3 is a high-performance crochet machine engineered for precision and efficiency. With an operating width of 40 inches and the capability to handle both normal (0.2-7CM) and special (10CM-60CM) tape widths, this machine is designed to meet diverse production needs.
This machine is tailored for manufacturers seeking a reliable and versatile crochet solution, ensuring consistent quality and performance for a wide range of applications.

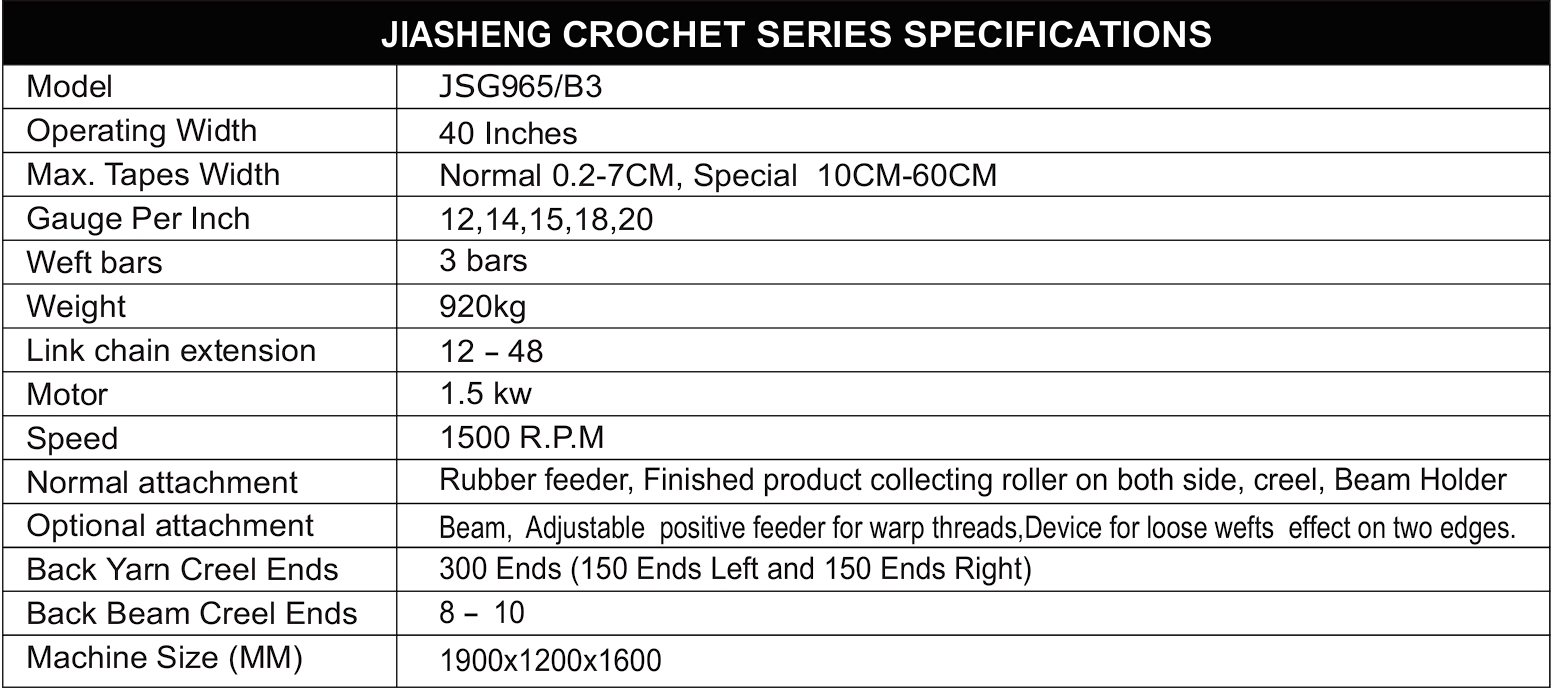

| JIASHENG CROCHET SERIES SPECIFICATIONS | |
|---|---|
| Model | JSG965/B3 |
| Operating Width | 40 Inches |
| Max. Tapes Width | Normal 0.2-7CM, Special 10CM-60CM |
| Gauge Per Inch | 12, 14, 15, 18, 20 |
| Weft bars | 3 bars |
| Weight | 920kg |
| Link chain extension | 12 – 48 |
| Motor | 1.5 kw |
| Speed | 1500 R.P.M |
| Normal attachment | Rubber feeder, Finished product collecting roller on both sides, creel, Beam Holder |
| Optional attachment | Beam, Adjustable positive feeder for warp threads, Device for loose wefts effect on two edges. |
| Back Yarn Creel Ends | 300 Ends (150 Ends Left and 150 Ends Right) |
| Back Beam Creel Ends | 8 – 10 |
| Machine Size (MM) | 1900x1200x1600 |
Suitable for weaving: wrap side belt, decorative belt, mask belt, belt, stretchBelts and other elastic and non-elastic belts, suitable for clothing, home textiles, medical, automobiles and other daily necessities
The machine o ers 2 to 12 models with a oor-panel design for smoother operation and reduced
vibration. Its high-strength faucet ensures durability and stable performance. The modular design
allows for easy Maintenance with universal parts. Electronic controls feature a self-test function for
quick issue detection. It includes automatic power outage memory, broken yarn self-stop, and
reduced tape scrap rates. Optional two- speed or servo motors with inch movement make debugging
easier. Key components, such as jacquard rope and electric parts, are made from imported materials
for superior quality.
