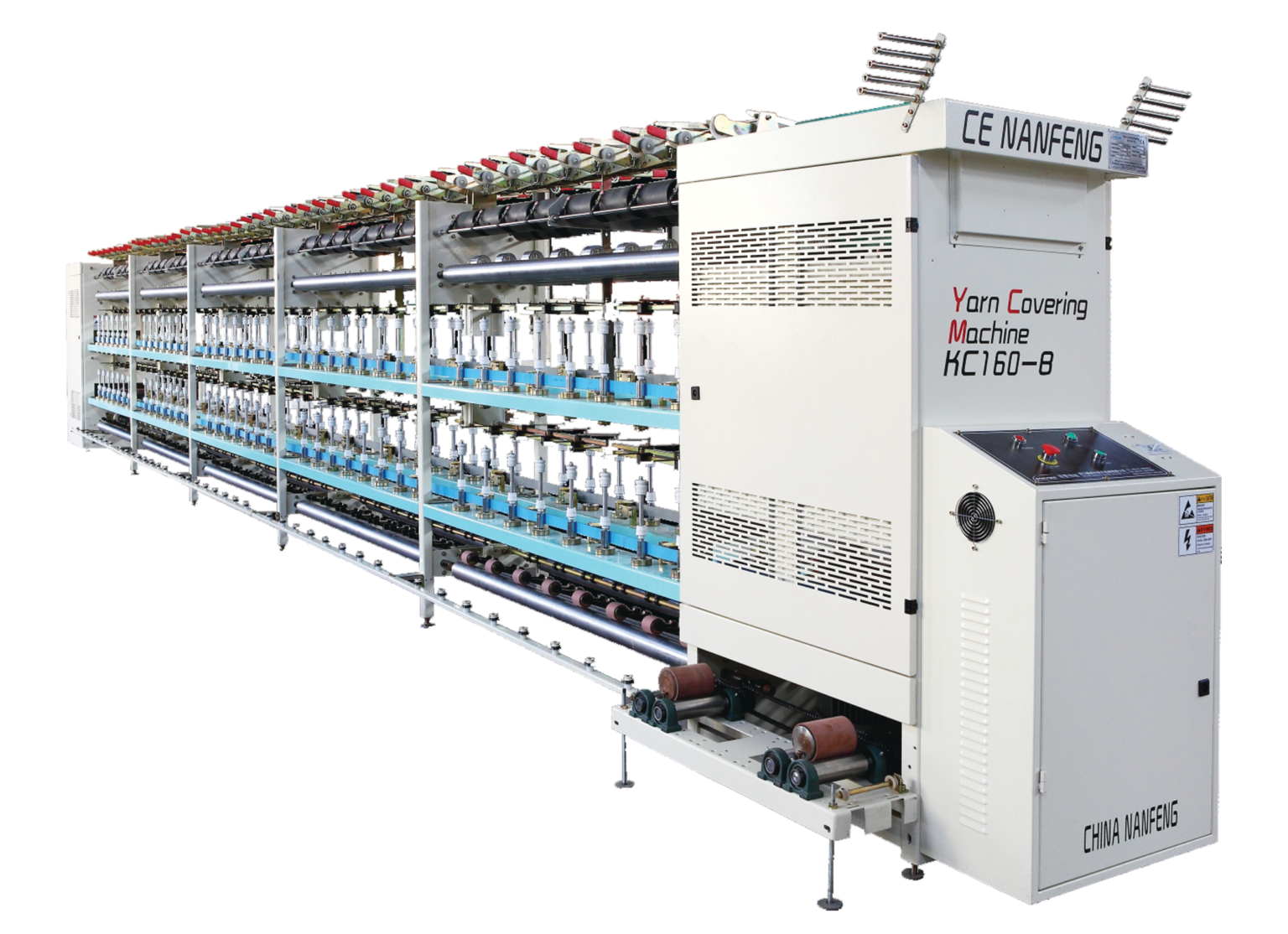

The KC160-B High-Speed Rubber Thread Machine from NANFENG is designed to manufacture high-quality rubber thread covering. This machine uses a combination of emulsion thread and rubber yarn as the core, with polyester, nylon, or cotton yarn as the covering material. It is specially built for covering rubber threads in a range of 30D-300D. The high-speed spindle capabilities and mechanical forming technology ensure precision and efficiency in the production process, making this machine ideal for a variety of industrial applications. With a robust construction and customizable features, the KC160-B offers optimal performance and flexibility.

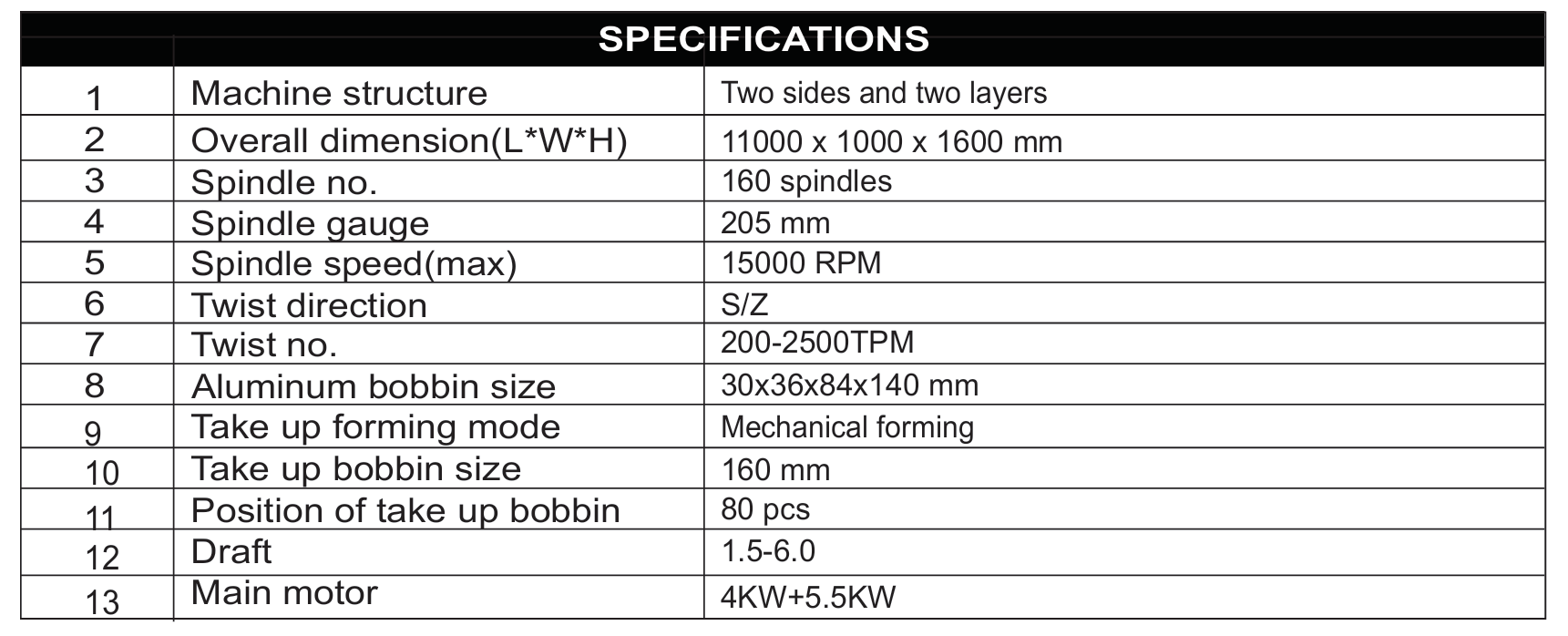

Key Features:

• Machine Structure: Compact and robust, with dimensions of 11000 x 1000 x 1600 mm, designed for easy integration into existing production lines.
• Spindle Configuration: Equipped with 160 spindles, ensuring high-volume production with consistency and accuracy.
• Twist Direction: Capable of S/Z twist directions for different yarn types, enhancing versatility.
• Spindle Speed: Capable of reaching a maximum speed of 15,000 RPM for fast and efficient production.
• Spindle Gauge: 160 mm, ensuring precise winding and consistent tension during operation.
• Take-Up Forming Mode: Utilizes mechanical forming to ensure smooth and uniform take-up during winding.
• Draft Range: Adjustable between 1.5 to 6.0, providing flexibility in processing different materials.
• Main Motor Power: The machine operates with a combination of 4KW + 5.5KW motors, ensuring powerful and efficient operation.
• Take-Up Bobbin Size: Designed to accommodate a 30x36x84x140 mm bobbin size, supporting various winding capacities.
• Spindle Speed Control: The machine is designed for precise control over spindle speed, ensuring optimal winding results.
• Aluminum Bobbin Size: The machine is compatible with a standard 205 mm bobbin size.
• Applications: Specifically designed for rubber thread covering, especially in the production of 30D-300D rubber yarn.
