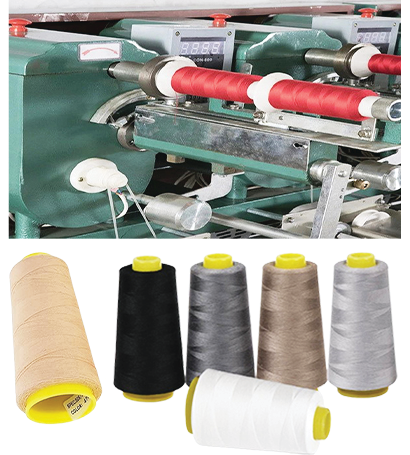

The Sewing Thread Winding Machine is designed for high-speed, precision winding of sewing threads. It offers multiple spindle configurations, ensuring efficient and uniform winding for various reel sizes.

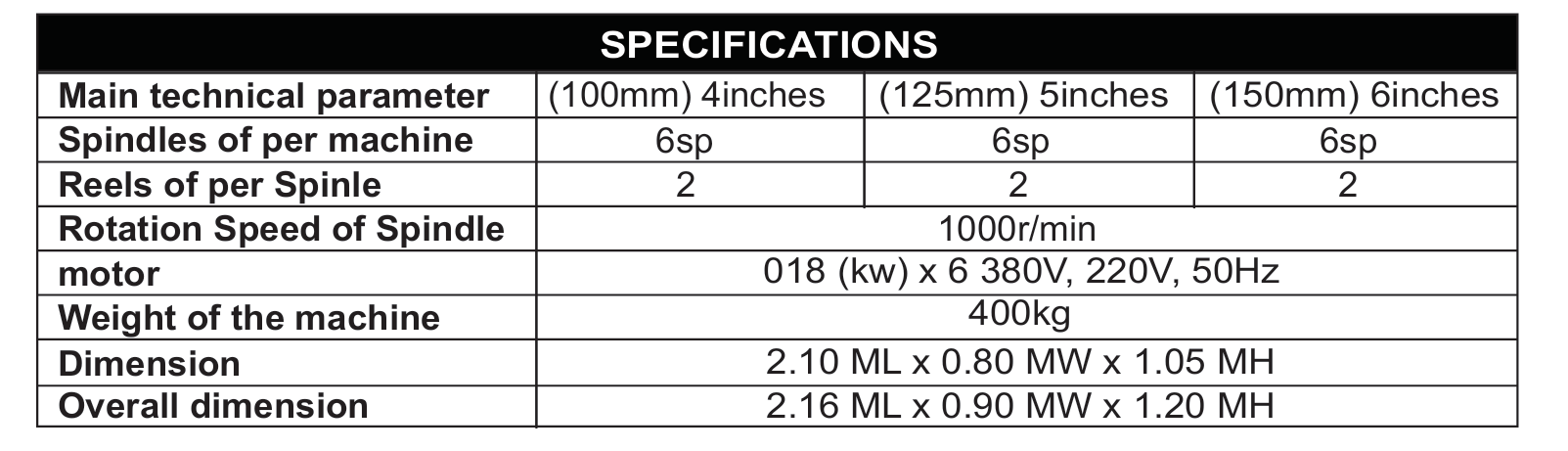

✅ Multiple Spindle Options: Supports 6 spindles per machine
✅ Dual Reel Capacity: 2 reels per spindle for enhanced efficiency
✅ High Rotation Speed: 1000 RPM spindle speed for smooth winding
✅ Powerful Motor: 0.18 kW x 6, supports 380V / 220V / 50Hz
✅ Heavy-Duty Build: Machine weight 400kg for stability
🔹 Ideal for sewing thread winding in textile industries
🔹 Compatible with multiple reel sizes (100mm, 125mm, 150mm)
🔹 Designed for high-speed, efficient production
The machine o ers 2 to 12 models with a oor-panel design for smoother operation and reduced
vibration. Its high-strength faucet ensures durability and stable performance. The modular design
allows for easy Maintenance with universal parts. Electronic controls feature a self-test function for
quick issue detection. It includes automatic power outage memory, broken yarn self-stop, and
reduced tape scrap rates. Optional two- speed or servo motors with inch movement make debugging
easier. Key components, such as jacquard rope and electric parts, are made from imported materials
for superior quality.
